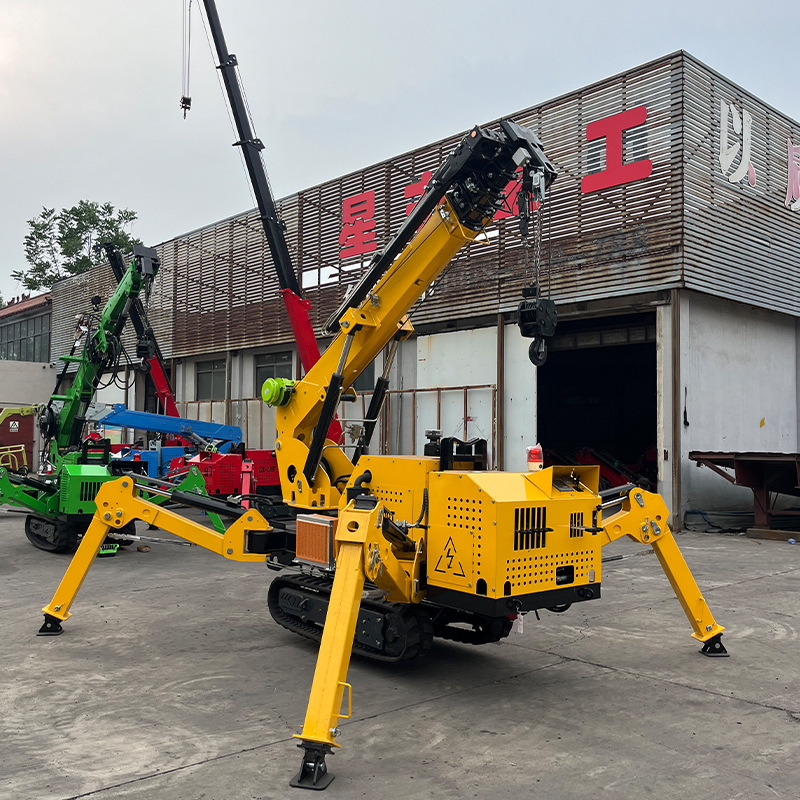

✪ Specification: 3t
✪ Maximum Operating Radius: 10.5m
✪ Maximum Ground Lift: 10.8m
✪ Vehicle Dimensions: Length 3.5m, Width 0.8m, Height 1.85m
✪ Self Weight: 2700kg
| Specifications | 3t | |
| Maximum Operating Radius | 10.5m | |
| Maximum Ground Lift | 10.8m | |
| Winch Device | Hook lifting speed | 0-8m/min(4 ropes) |
| Specification of steel wire rope | Φ8mm×45m | |
| Telescopic Device | Boom form | 2.4m×6-section lifting arm（Support customization） |
| Boom length/time | 3.1m-9.2m/20sec （Support customization） | |
| Luffing device | Boom angle/time | 0-78°/13sec |
| Gyroscope | Rotation angle/speed | 0-360°(Continuous)/60sec |
| Outrigger | Outrigger movement form | Manual screw out+oil pressure automatic support (two legs) |
| Maximum extension amplitude (mm) | 4300 (length) X3700 (rear) X4300 (front) | |
| Running Gear | Walking mode | Hydraulic motor drive |
| Walking speed | 0-2.5km/h | |
| Gradeability | 25°(36%) | |
| Electrical Machinery | Voltage | AC380V |
| Engine | Manufacturer | Changchai（Support customization） |
| Type/displacement | EV80/F195 | |
| Start mode | Electric start | |
| Start performance | -5°C~40°C | |
| Fuel/Volume | Diesel oil/8L | |
| Battery capacity | 12v 45AH | |
| Fuel consumption rate | 274g/kW-h | |
| Noise level | Rated speed ≤ 81.5dBA (1m) | |
| Operating System | Operation type (boom/leg), manual walking | Manual operation, manual walking |
| Operational Characteristics | Manual operation(Optional remote control) | |
| Standard configuration | Diesel engine and electric motor (dual power) | |
| Length, width, height | 3.5 meters length, 0.8 meters width, and 1.85 meters height | |
| Dead-weight (T) | 2700kg | |
| Track | 220 (width) 72 (pitch) 50 (section) | |
| Optional Device | Optional torque controller/remote control /hanging basket/Hydraulic fly jib | |

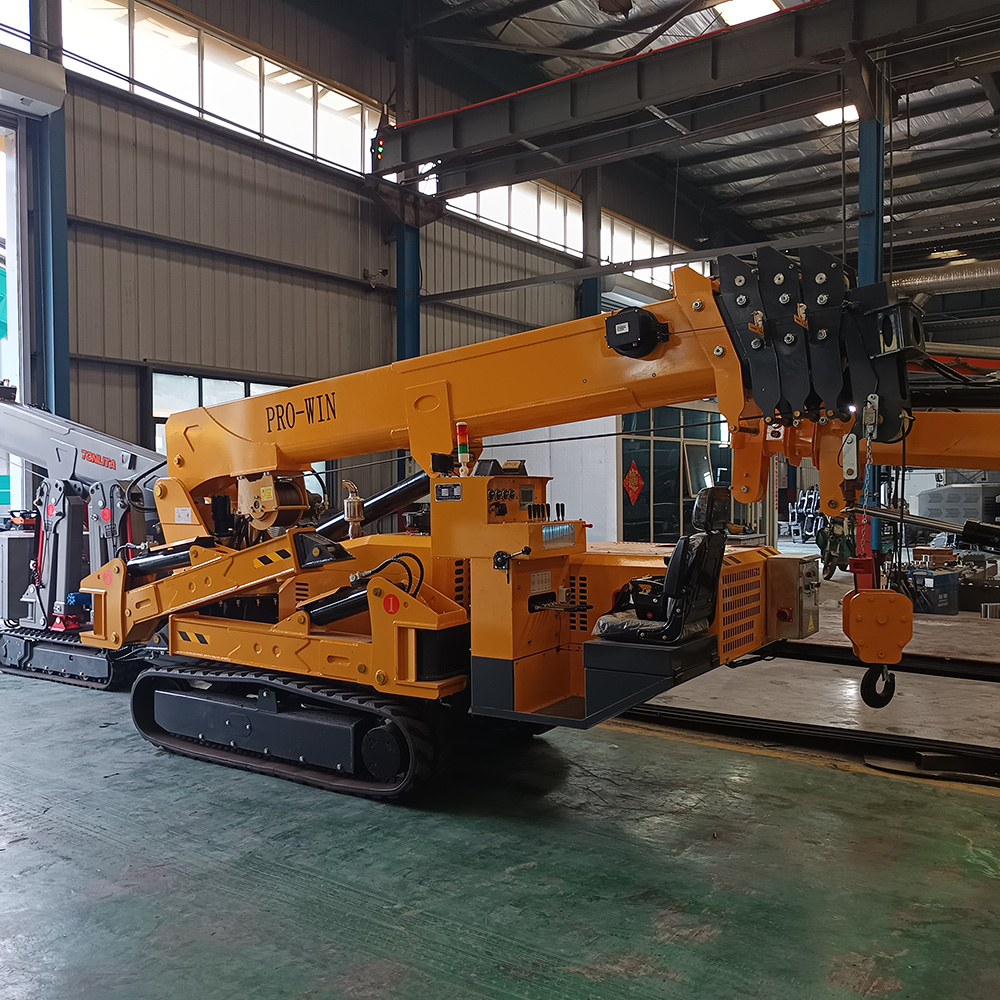

5-TON CRAWLER SPIDER CRANE
✪ Specification: 5t
✪ Maximum Operating Radius: 15m
✪ Maximum Ground Lift: 17m
✪ Vehicle Dimensions: Length 4.7m, Width 1.5m, Height 2.25m
✪ Self Weight: 6100kg
| Specifications | 5t | |
| Maximum Operating Radius | 15m | |
| Maximum Ground Lift | 17m | |
| Winch Device | Hook lifting speed | 12m/min(4 ropes) |
| Specification of steel wire rope | Φ812mm×80m | |
| Telescopic Device | Boom form | 4m×5-section lifting arm（Support customization） |
| Boom length/time | 4.5m-17m/54sec （Support customization） |
|
| Luffing device | Boom angle/time | 0-78°/13sec |
| Gyroscope | Rotation angle/speed | 0-360°(Continuous)/38sec |
| Outrigger | Outrigger movement form | Manual screw out+oil pressure automatic support (two legs) |
| Maximum extension amplitude (mm) | 5800 (length) X4900 (rear) X5600 (front) |
|
| Running Gear | Walking mode | Hydraulic motor drive double speed |
| Walking speed | 0-2.5km/h | |
| Gradeability | 25°(36%) | |
| Engine | Manufacturer | Changchai（Support customization） |
| Type/displacement | 490 |
|
| Start mode | Electric start | |
| Start performance | -5°C~40°C | |
| Fuel/Volume | Diesel oil/8L | |
| Battery capacity | 12v 45AH | |
Emission standard |
National PhaseⅡ |
|
| Operating System | Operation type (boom/leg), manual walking | Manual operation(Optional remote control) |
| Operational Characteristics | Manual operation(Optional remote control) | |
| Standard configuration | Diesel engine and electric motor (dual power) | |
| Length, width, height | 4.7 meters length, 1.5 meters width, and 2.25 meters height |
|
| Dead-weight (T) | 6100kg |
|
| Track | 300 (width) 52.5 (pitch) 90 (section) |
|
| Optional Device | Optional torque controller/remote control /hanging basket/Hydraulic fly jib | |
8-TON CRAWLER SPIDER CRANE
✪ Specification: 8t
✪ Maximum Operating Radius: 18m
✪ Maximum Ground Lift: 21m
✪ Vehicle Dimensions: Length 6.15m, Width 1.6m, Height 2.25m
✪ Self Weight: 8700kg
| Specifications | 8t | |
| Maximum Operating Radius | 18m | |
| Maximum Ground Lift | 21m | |
| Winch Device | Hook lifting speed | 12m/min(4 ropes) |
| Specification of steel wire rope | Φ812mm×80m | |
| Telescopic Device | Boom form | 5m×5-section lifting arm（Support customization） |
| Boom length/time | 5.5m-21m/54sec （Support customization） |
|
| Luffing device | Boom angle/time | 0-78°/13sec |
| Gyroscope | Rotation angle/speed | 0-360°(Continuous)/38sec |
| Outrigger | Outrigger movement form | Manual screw out+oil pressure automatic support (two legs) |
| Maximum extension amplitude (mm) | 7000 (length) X5070 (rear) X6700 (front) |
|
| Running Gear | Walking mode | Hydraulic motor drive double speed |
| Walking speed | 0-2.5km/h | |
| Gradeability | 25°(36%) | |
| Engine | Manufacturer | Yunnei（Support customization） |
| Type/displacement | 490 |
|
| Start mode | Electric start | |
| Start performance | -5°C~40°C | |
| Fuel/Volume | Diesel oil/8L | |
| Battery capacity | 12v 45AH | |
Emission standard |
National PhaseⅡ |
|
| Operating System | Operation type (boom/leg), manual walking | Manual operation, manual walking(Optional remote control) |
| Operational Characteristics | Manual(Optional remote control) |
|
| Standard configuration | Diesel engine and electric motor (dual power) | |
| Length, width, height | 6.15 meters length, 1.6 meters width, and 2.25 meters height |
|
| Dead-weight (T) | 8700kg |
|
| Track | 350 (width) 52.5 (pitch) 104 (section) |
|
| Optional Device | Optional torque controller/remote control /hanging basket/Hydraulic fly jib | |

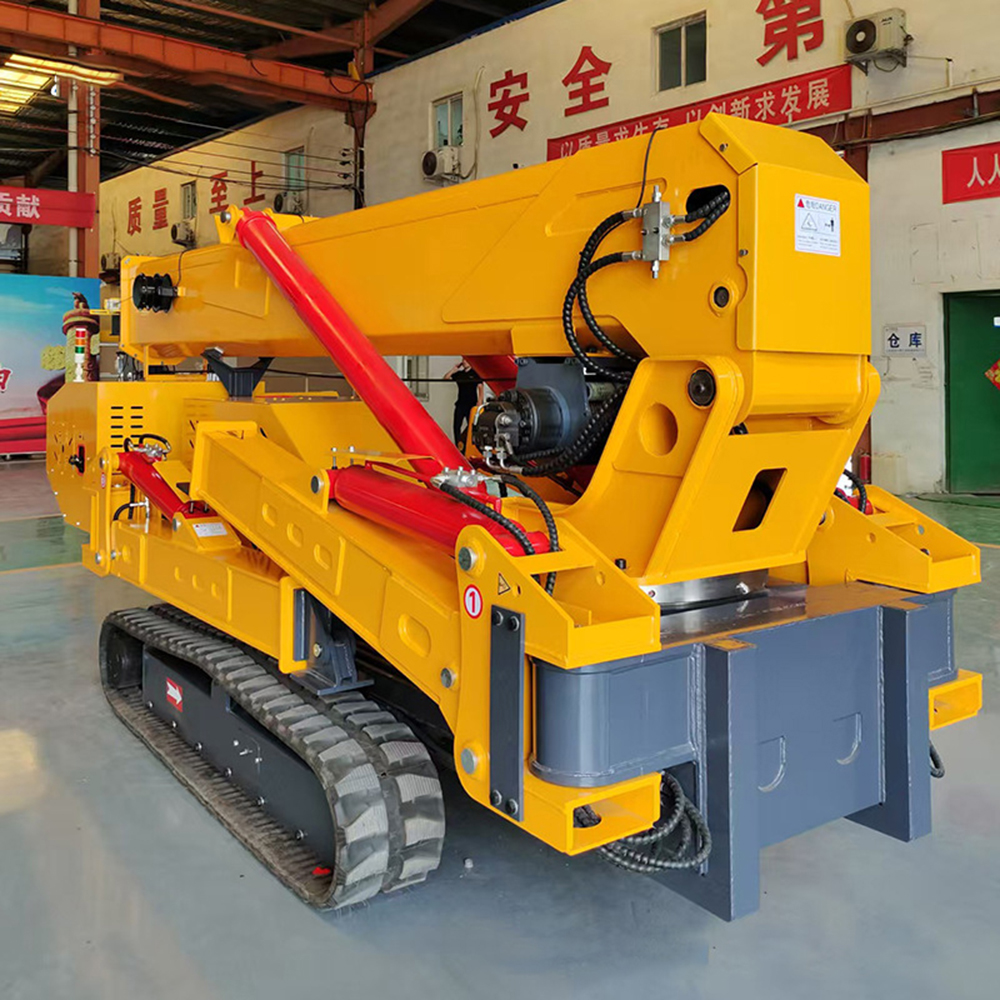

10-TON CRAWLER SPIDER CRANE
✪ Specification: 10t
✪ Maximum Operating Radius: 18m
✪ Maximum Ground Lift: 21m
✪ Vehicle Dimensions: Length 6.15m, Width 1.8m, Height 2.3m
✪ Self Weight: 10500kg
| Specifications | 10t | |
| Maximum Operating Radius | 18m | |
| Maximum Ground Lift | 21m | |
| Winch Device | Hook lifting speed | 11m/min(4 ropes) |
| Specification of steel wire rope | Φ12mm×100m | |
| Telescopic Device | Boom form | 5m×5-section lifting arm（Support customization） |
| Boom length/time | 5.5m-21m/54sec （Support customization） |
|
| Luffing device | Boom angle/time | 0-78°/15sec |
| Gyroscope | Rotation angle/speed | 0-360°(Continuous)/40sec |
| Outrigger | Outrigger movement form | Manual screw out+hydraulic telescopic+automatic support |
| Maximum extension amplitude (mm) | Left and right (7000) front and rear (6500) |
|
| Running Gear | Track structure |
Rubber track |
| Walking mode | Hydraulic motor drive double speed |
|
| Walking speed | 0-2.5km/h | |
| Gradeability | 25°(36%) | |
| Engine | Manufacturer | Yunnei（Support customization） |
| Type/displacement | 490 |
|
| Start mode | Electric start | |
| Start performance | -5°C~40°C | |
| Fuel/Volume | Diesel oil/8L | |
| Battery capacity | 12v 45AH | |
Emission standard |
National PhaseⅡ |
|
| Operating System | Operation type (boom/leg), manual walking | Manual operation, manual walking(Optional remote control) |
| Operational Characteristics | Manual(Optional remote control) |
|
| Standard configuration | Diesel engine and electric motor (dual power) | |
| Length, width, height | 6.15 meters length, 1.8 meters width, and 2.3 meters height |
|
| Dead-weight (T) | 10500kg |
|
| Track | 350 (width) 52.5 (pitch) 104 (section) |
|
| Optional Device | Optional torque controller/remote control /hanging basket/Hydraulic fly jib | |

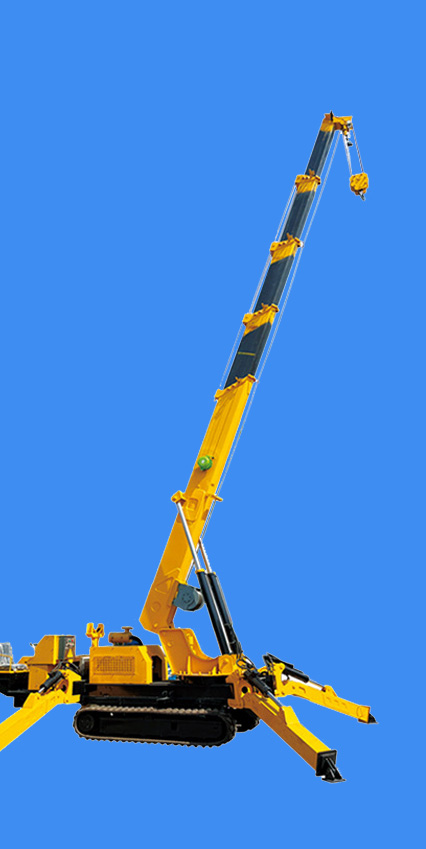

ABOUT US
